JYX U-230 Instrument Wireless Microphone

• JYX U-230

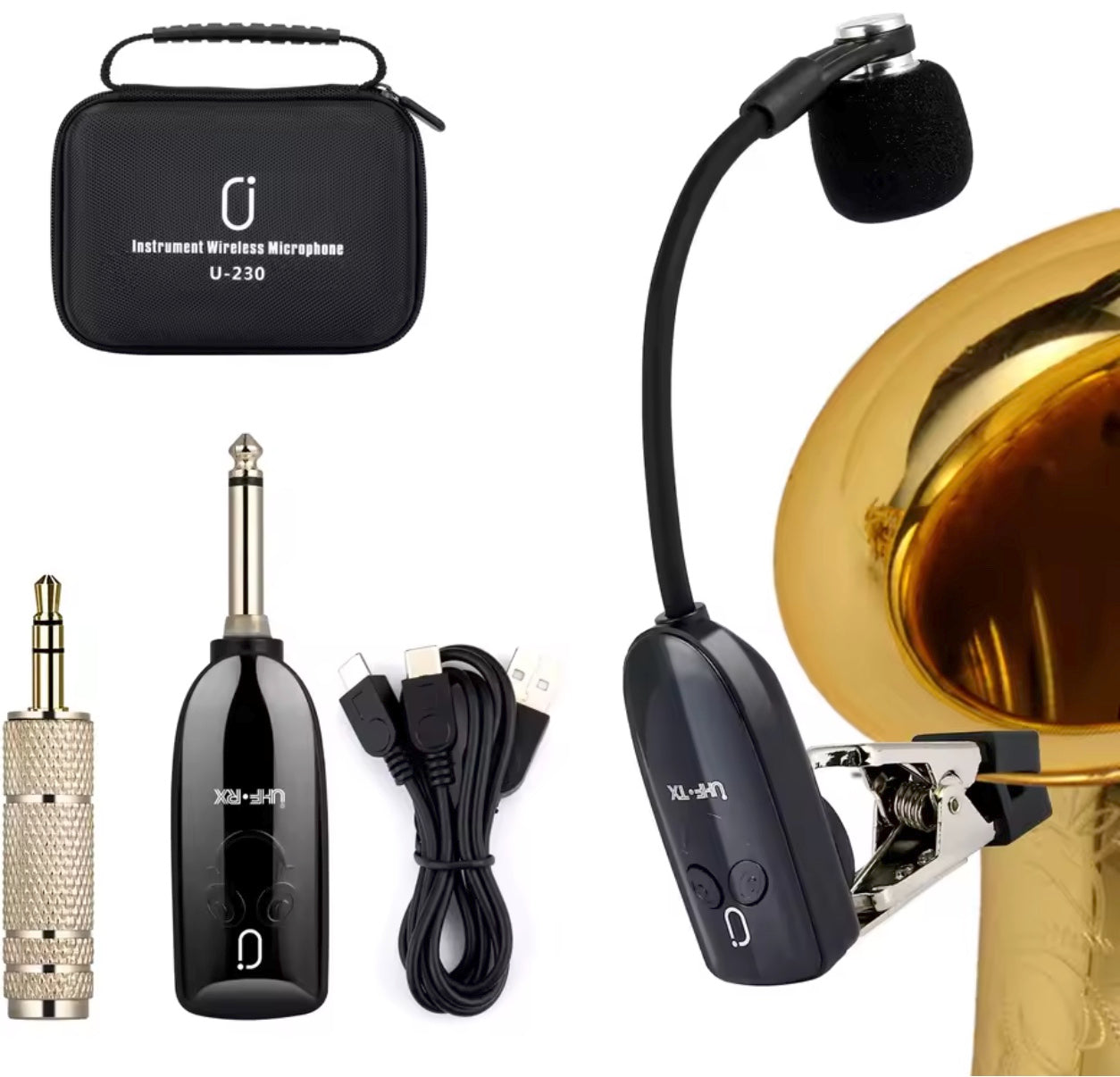

• Instrument Wireless System (U-230): Designed specifically for instruments like saxophones, trumpets, and trombones. It features a clip-on transmitter and a compact receiver, both of which are USB rechargeable.
• Vocal/Headset System (U-230): A more general-purpose system used for karaoke, teaching, and fitness. This version often includes a LED display on the receiver to monitor channels and battery life, and some models even feature built-in echo and reverb effects.

• Frequency Range: Professional versions operate between 500–980MHz.
• Wireless Range: Offers a stable connection typically between 60–120 metres, though some compact consumer versions are rated up to 15 metres.
• Battery Life: Rechargeable units generally last around 5.5 to 6 hours on a full charge.
• Connectivity: Many modern iterations use USB-C (Type-C) for charging and offer a 3.5mm or 6.35mm jack output for connecting to speakers, mixers, or PA systems.

Operating Frequency: UHF 500–980 MHz.

Channels: Up to 200 selectable channels with 250 kHz spacing.

Wireless Range: 60–120 metres in ideal conditions.

Frequency Response: 40 Hz – 18 kHz.

Signal-to-Noise Ratio (S/N): >105 dB.

Total Harmonic Distortion (THD): <0.5%.

Transmitter Power: Selectable High (10 mW) or Low (5 mW).

Power Supply:

Receiver: USB 5V, 1A or DC 12V/500mA depending on the specific kit.

Transmitter: 2 x AA batteries.
